The History of Graphics Cards Coolers – Part I

A heatsink with a fan – how much more complicated could it be?

Most of the power delivered to a chip is emitted in the form of thermal energy. That energy has to be dissipated into surrounding air. Coolers mounted on graphics cards have come a long way since the nineties.

In the early years of graphic accelerators, there was no need for extra cooling as chips were bare.

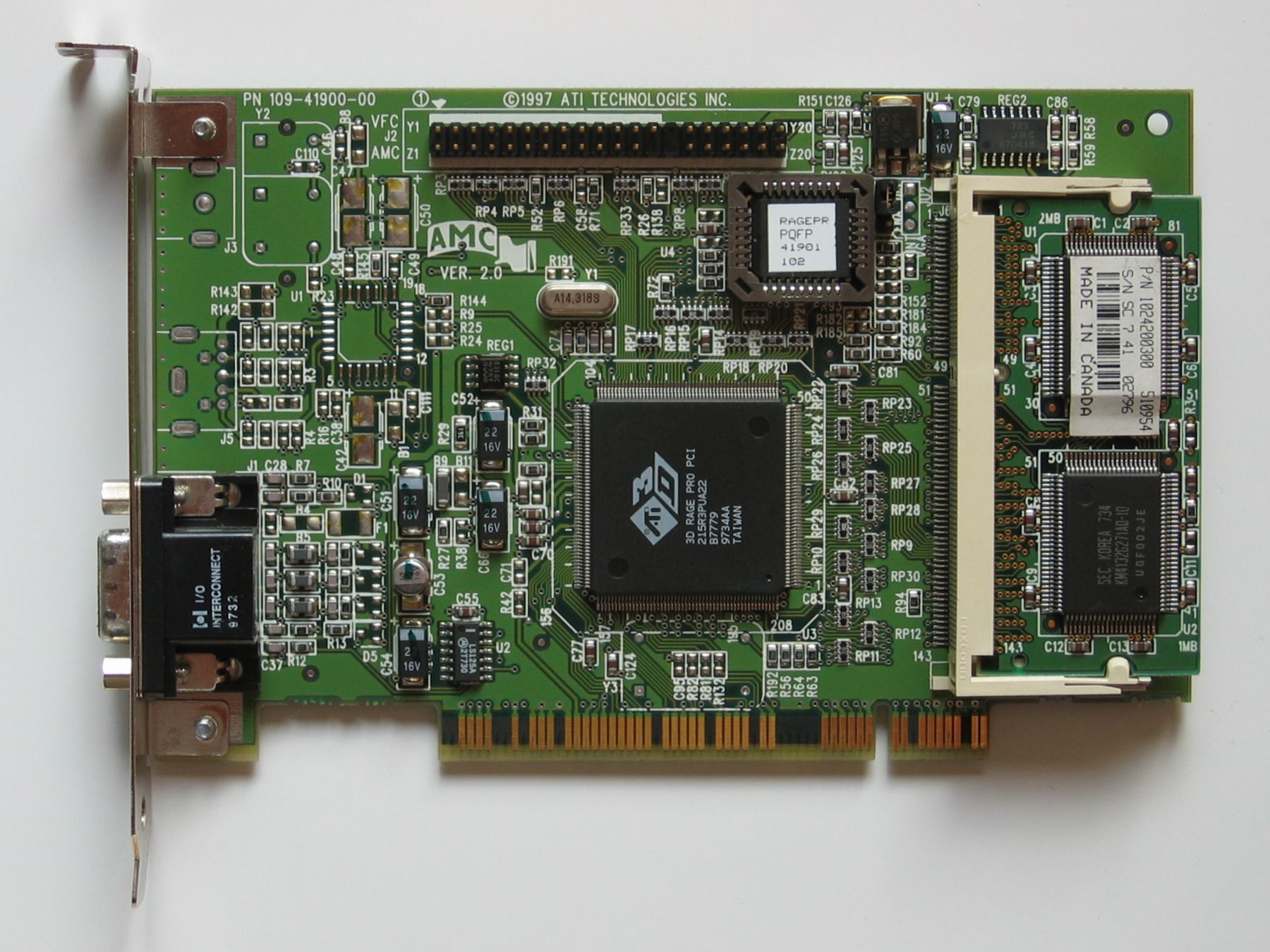

Rage Pro with no cooling, AD 1997

Small passive heatsinks and heatsinks with low-diameter fans were later introduced, usually attached to GPUs with adhesive paste. Pushpins were rare and no one had even thought about screws.

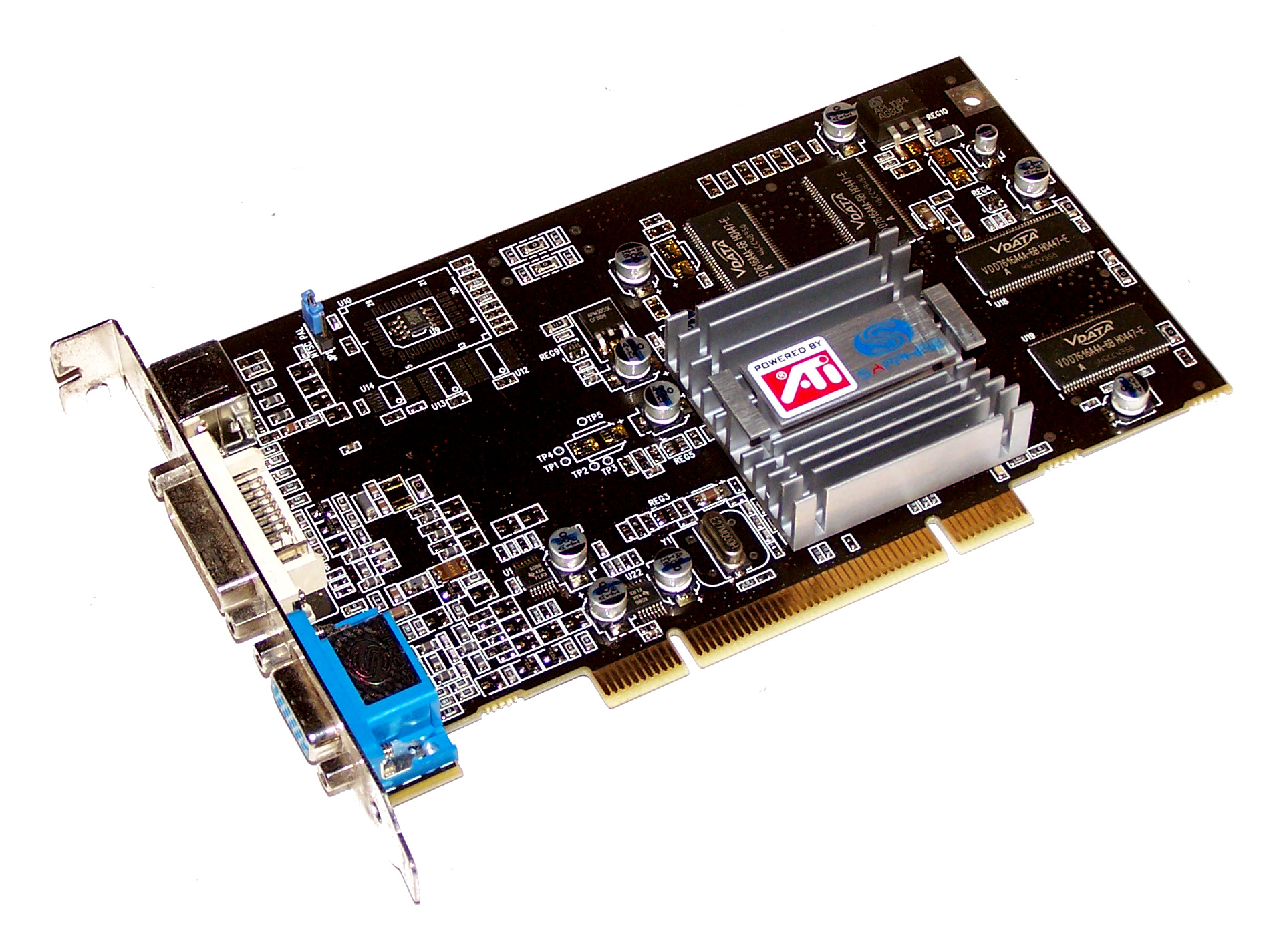

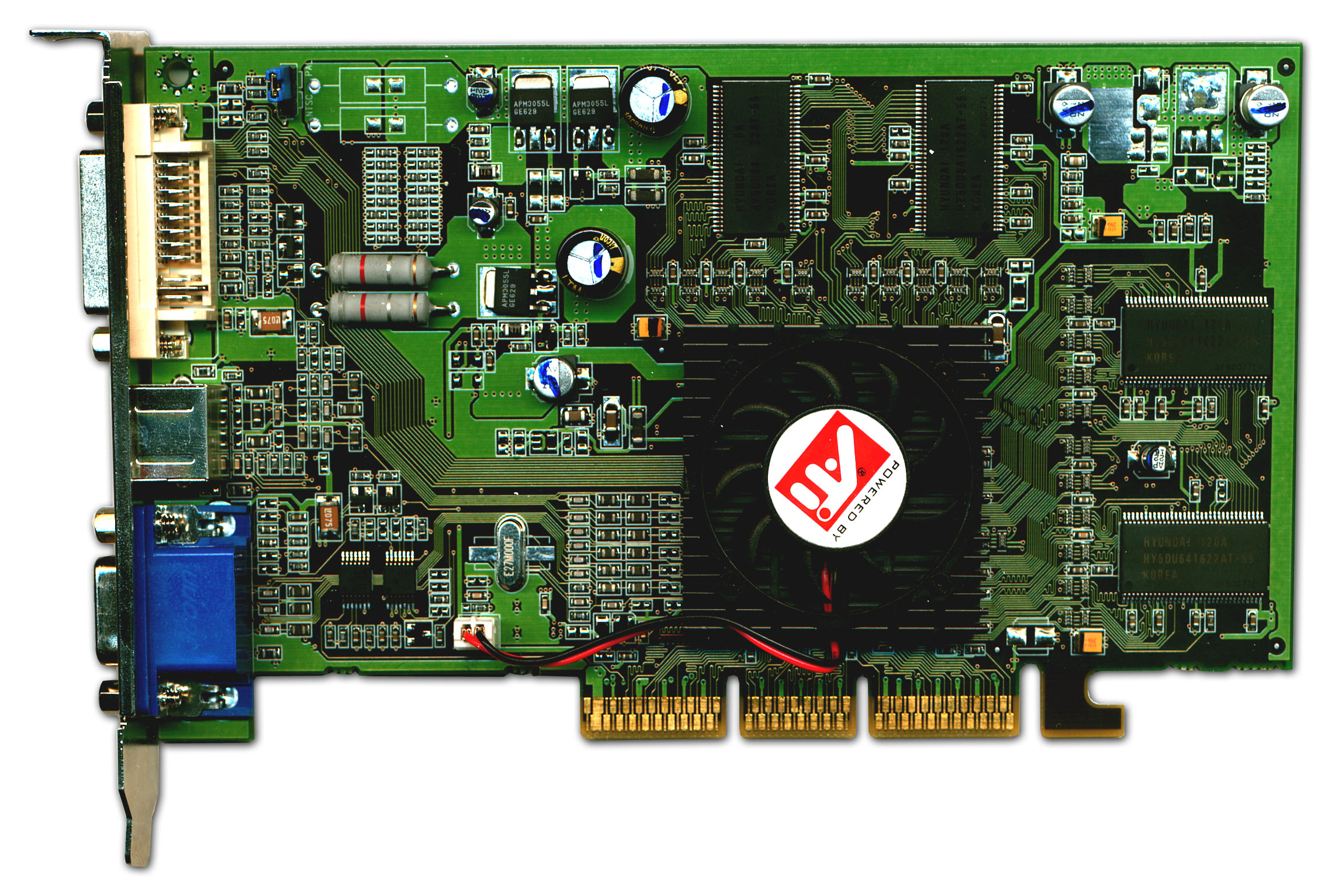

A Radeon 7000 with a small heatsink glued directly to the GPU, AD 2001

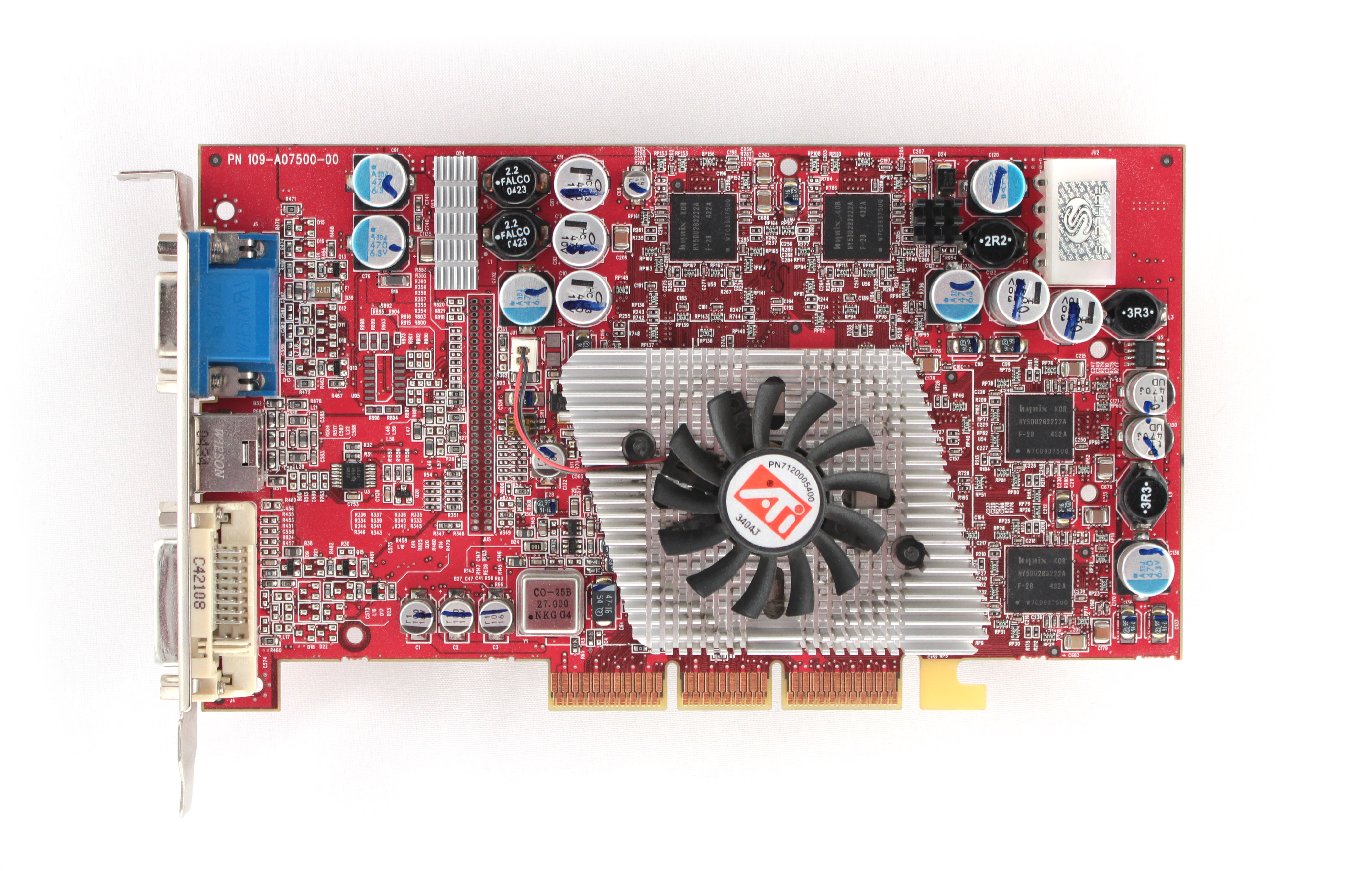

Radeon 7500 with a small heatsink plus tiny fan glued directly to the GPU, AD 2001

As they gained more computational power, graphics cards also become more power hungry. According to specifications, an AGP slot is capable of delivering up to 48,25 W. At some point, that was not enough and connectors for auxiliary powering were introduced. At first these were Berg (floppy) connectors or 4-pin Molex connectors. While heatsinks and the fans used to cool them had by then grown somewhat in size, they were still fairly small and light. All cards (with very few exceptions) occupied only one PCI slot.

Radeon 9800 PRO – a slightly enlarged aluminum cooler mounted with push-pins and a 4-pin Molex connector visible in the upper-right corner, AD 2003

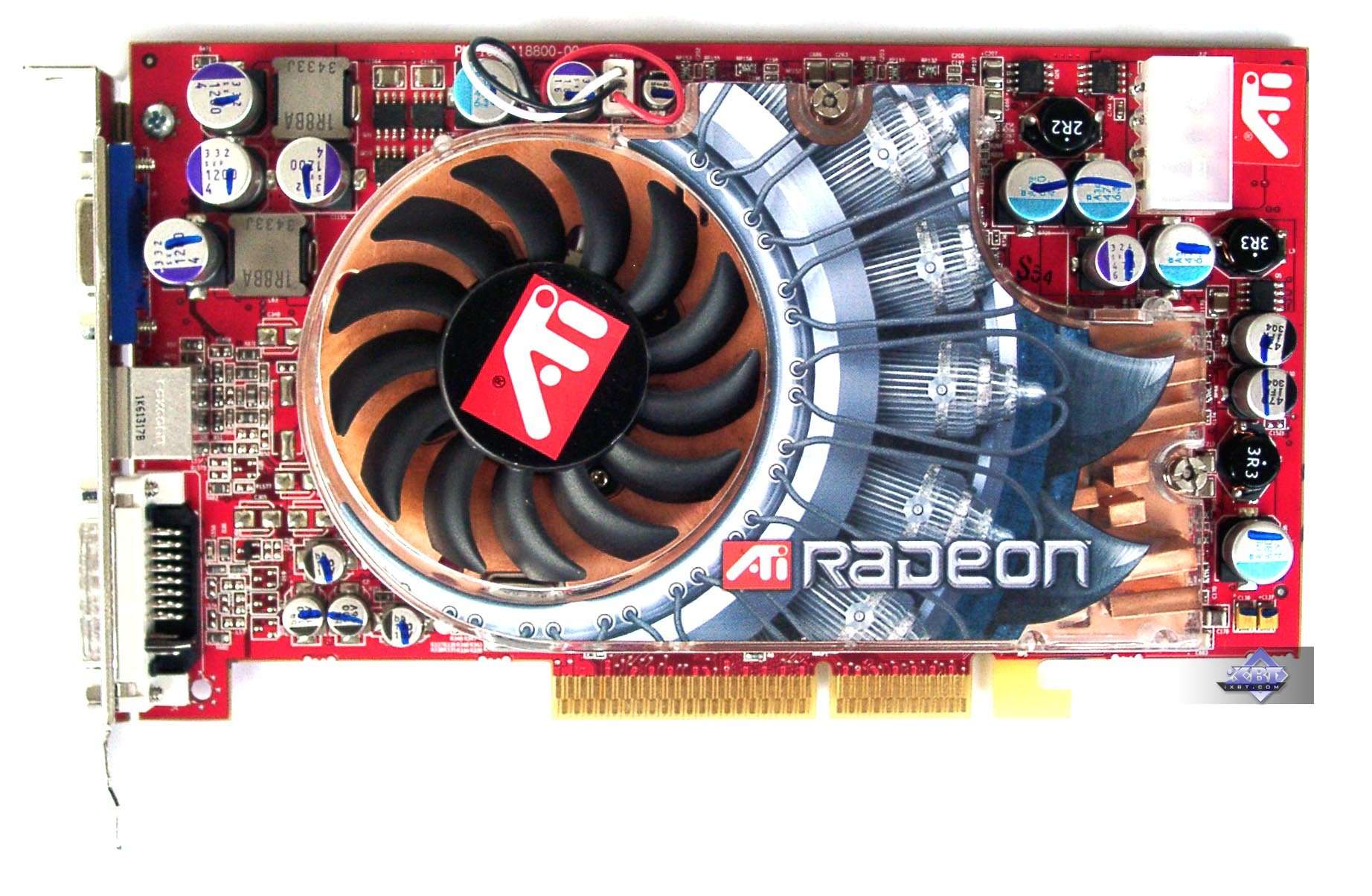

The Radeon 9800 XT – a larger heatsink plus larger fan and clearly visible mounting screws. The heatsink also cools RAM chips, AD 2003

The first large-scale use of a blow-out style cooler came when the FX 5800 Ultra cards premiered. The solution NVIDIA reference design introduced worked differently than today’s blow-out style coolers.

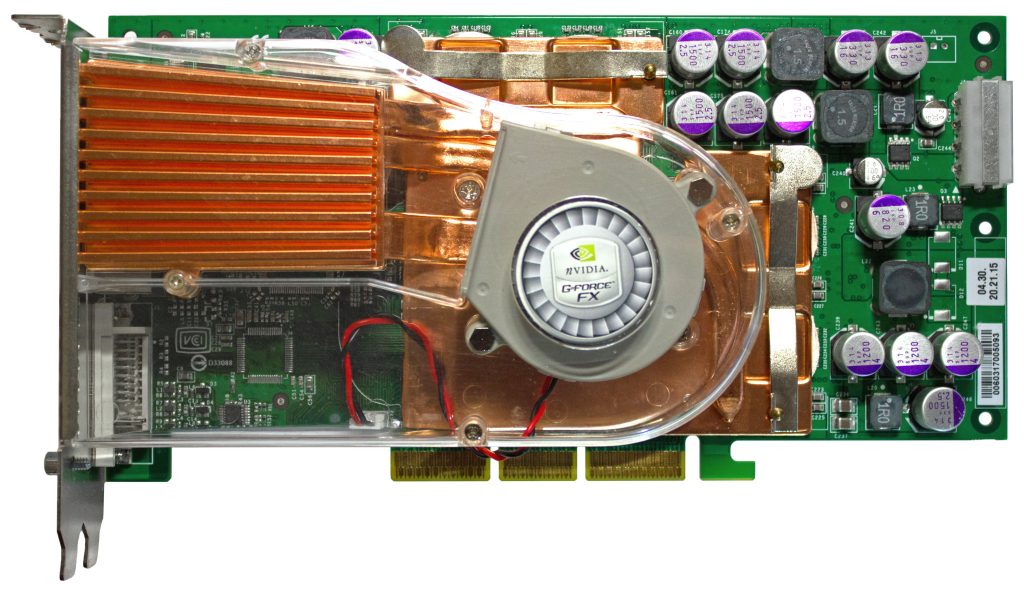

FX 5800 Ultra – cold air was sucked in through the PCI slot and then hot air was also pushed out through the PCI slot. Both the intake and outtake were positioned side-by-side. Unfortunately, the card turned out to be one of the loudest models in history. AD 2003

The company ABIT especially favoured blower-style coolers and established the OTES system, which it used on both their cards and motherboards—though the latter weren’t actually based on blower-style fans.

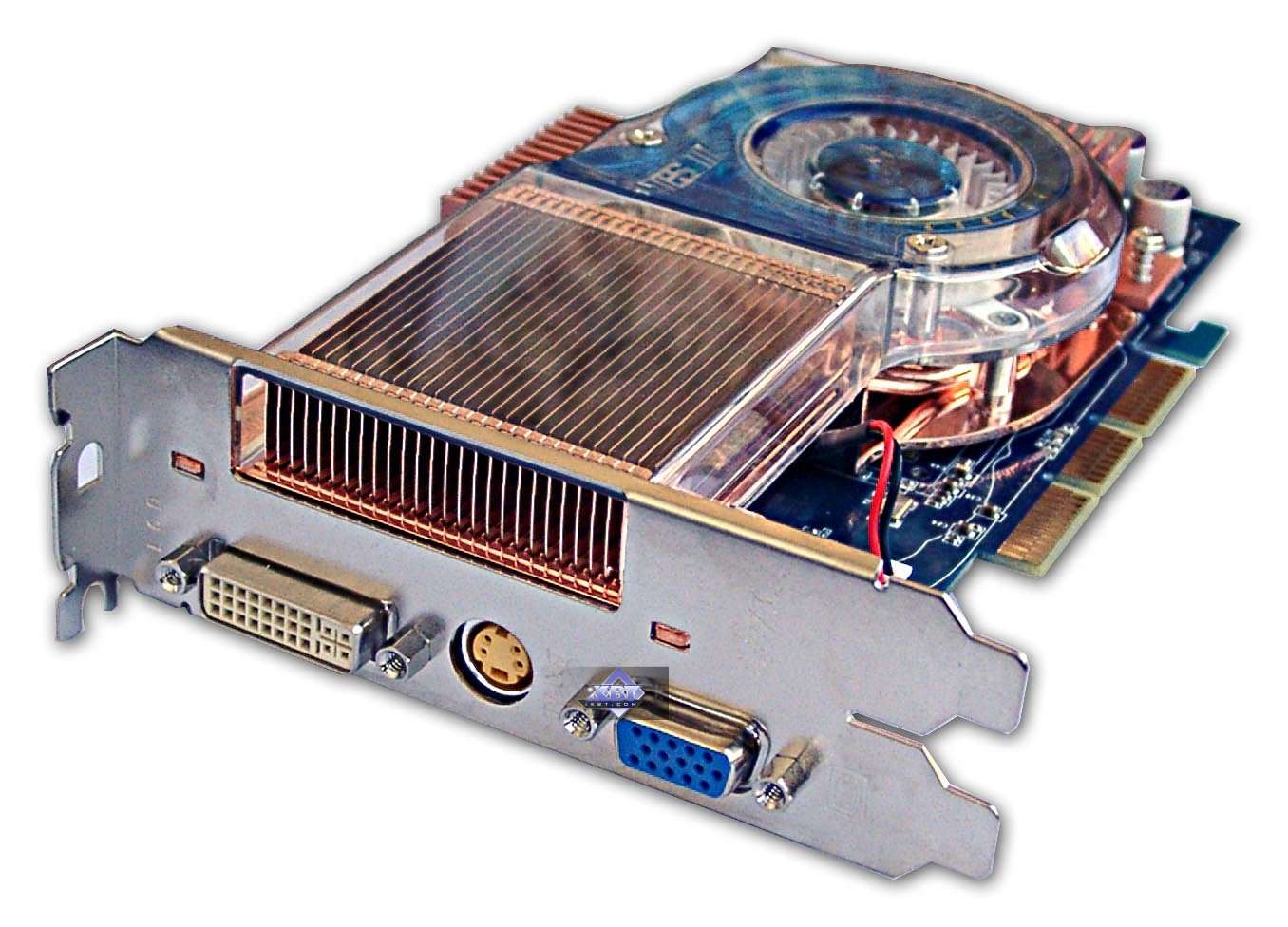

ABIT Silurio FX5600 Ultra OTES, AD 2003

This is when heatpipes—metal pipes with liquid inside (usually ammonia, acethone, water, diethyl ether or some type of chlorofluorocarbon)—began to be implemented on a larger scale. As liquid gets hot, it evaporates and travels through the pipe. As it travels, it loses heat and turns into a liquid again as it cools down. This loop is endless, making the heat pipe an excellent way to transfer heat from one point to another. The pipes are usually attached to a cooling plate directly over the GPU and then transfer the heat to the heatsink located away from the GPU.

Heatpipes eventually became, and remain today, a fixture in mid- and high-end cards.

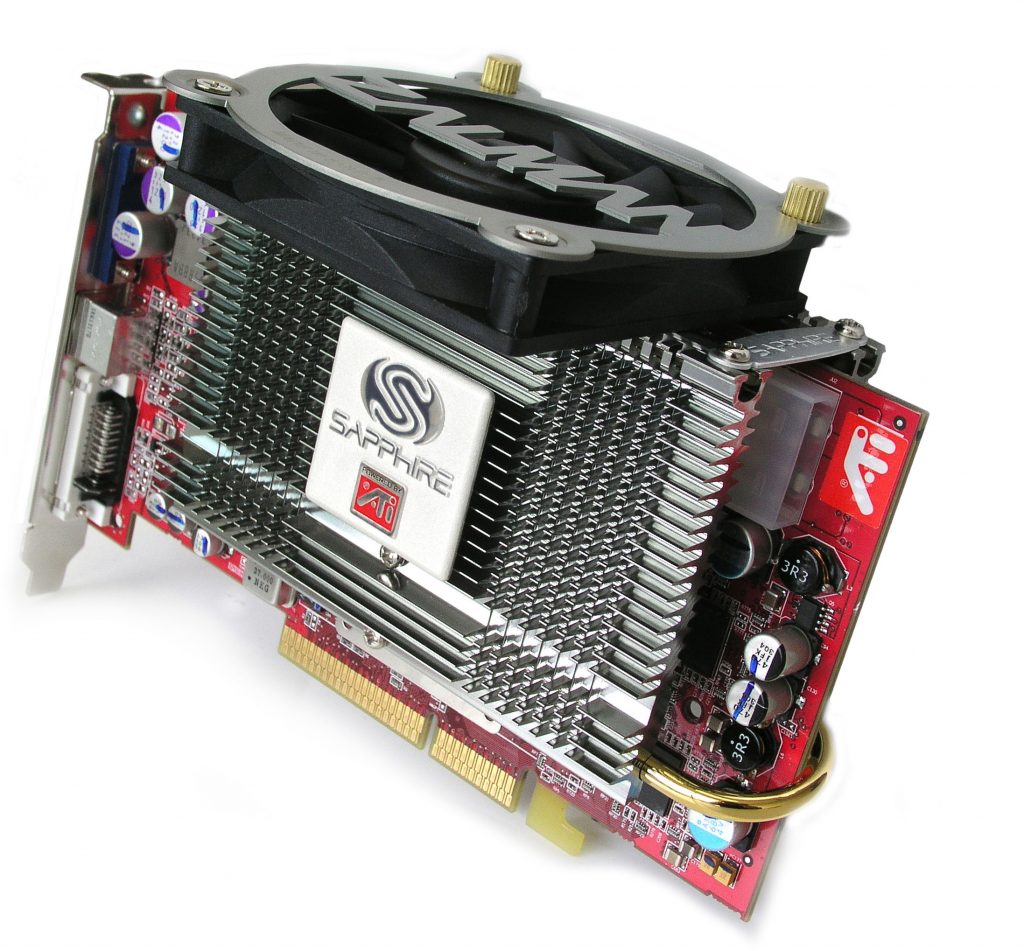

Radeon 9800 XT Ultimate with a Zalman passive cooler (the top-mounted fan is optional), AD 2003

Heatpipes, a dual slot cooler and blower-style fans were a major leap forward and just a taste of even bigger innovations to come.

Please stay tuned for the next installment of this series!
